HDUE™ Holdown

HDUE Holdown

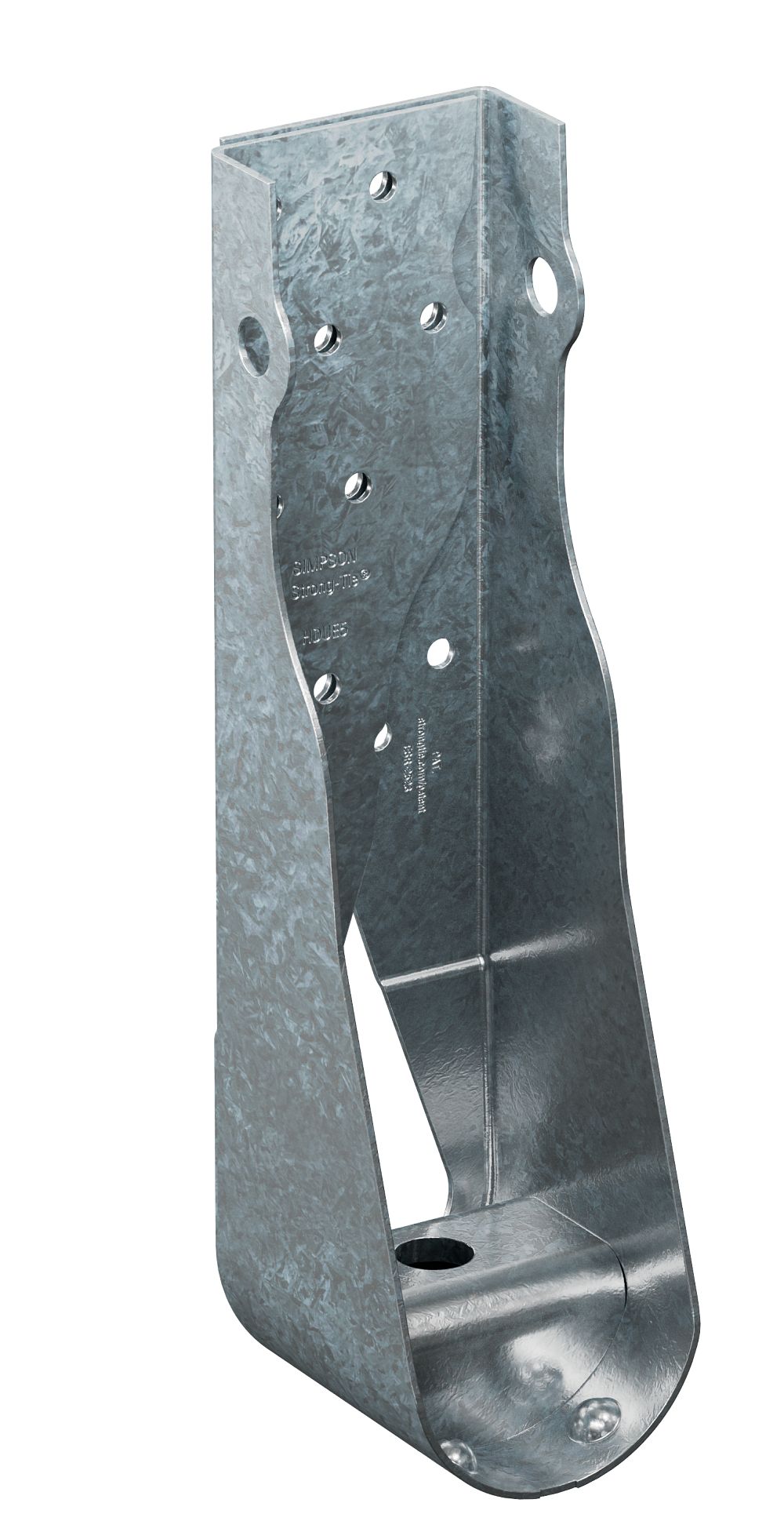

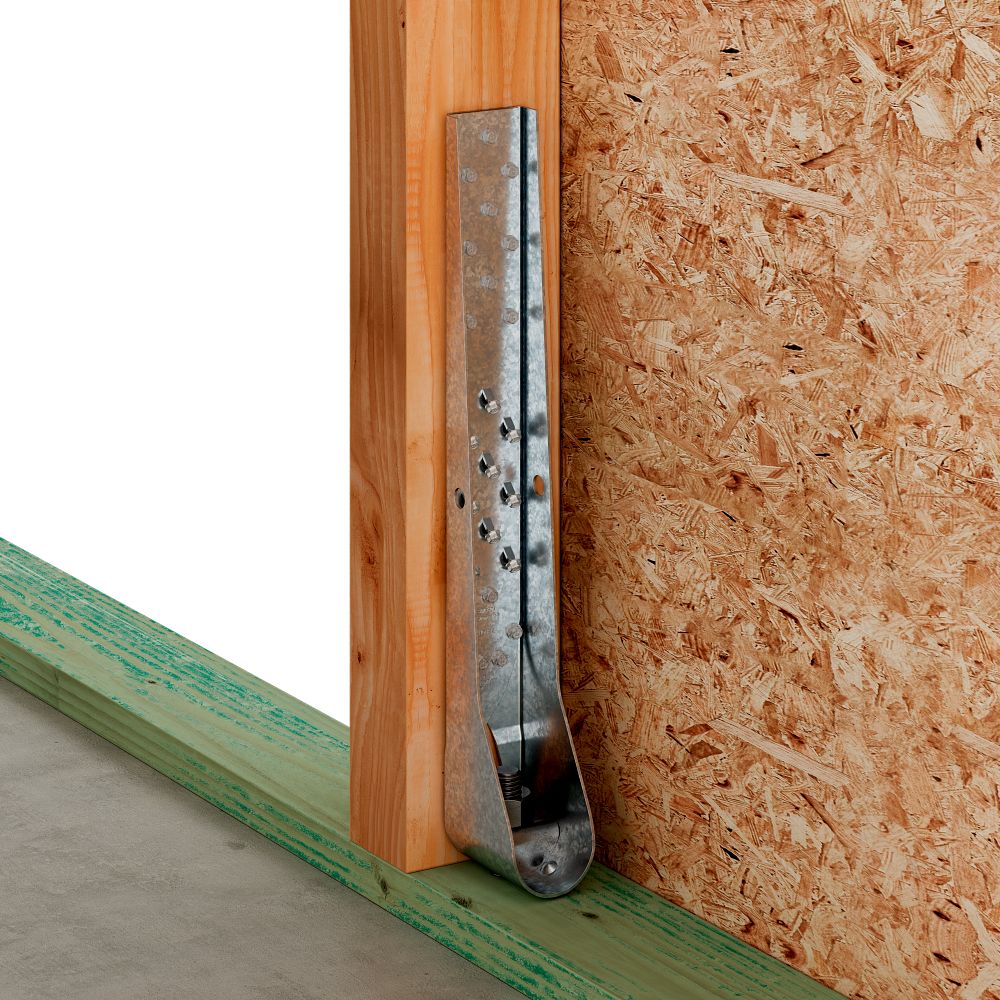

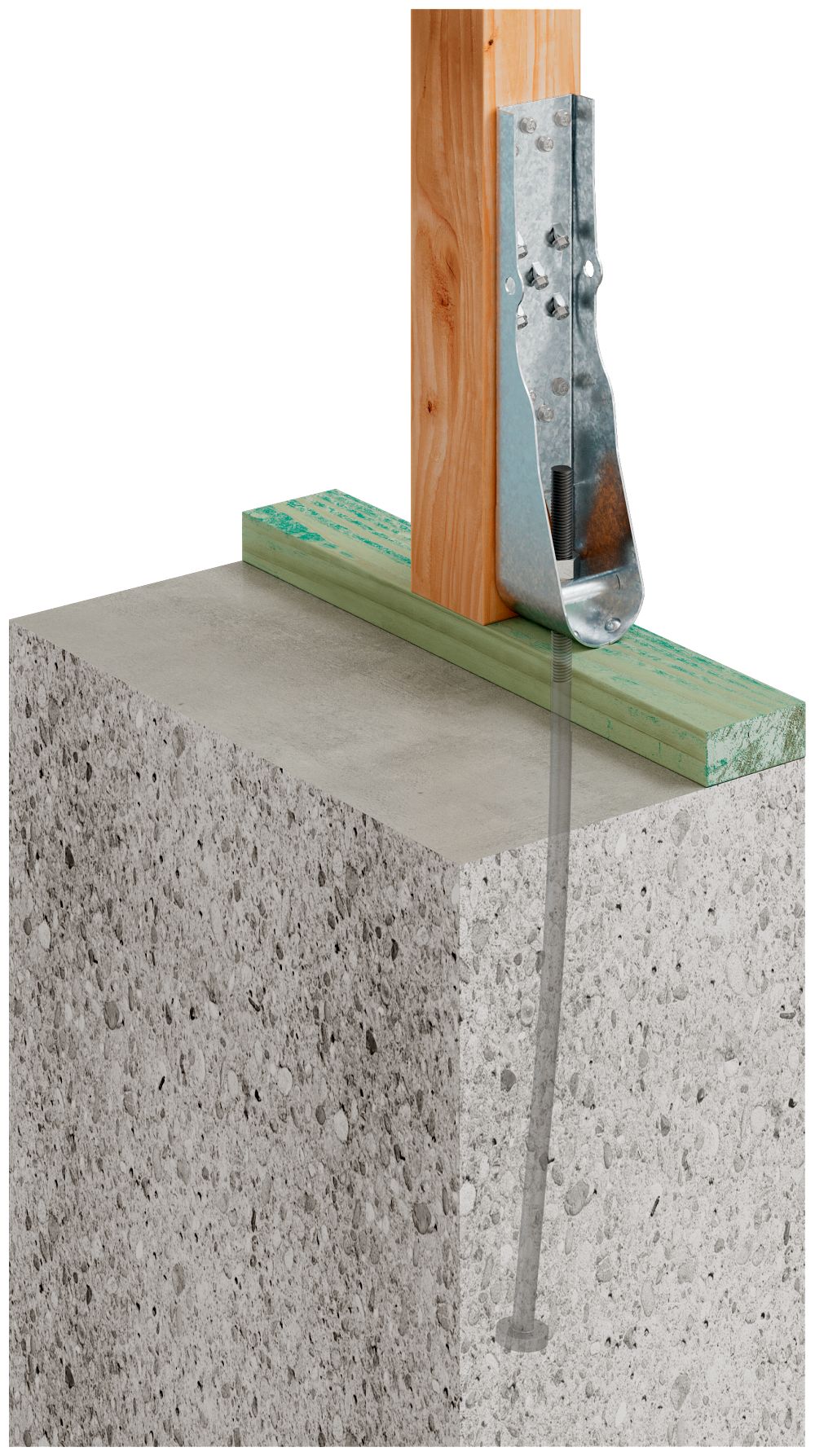

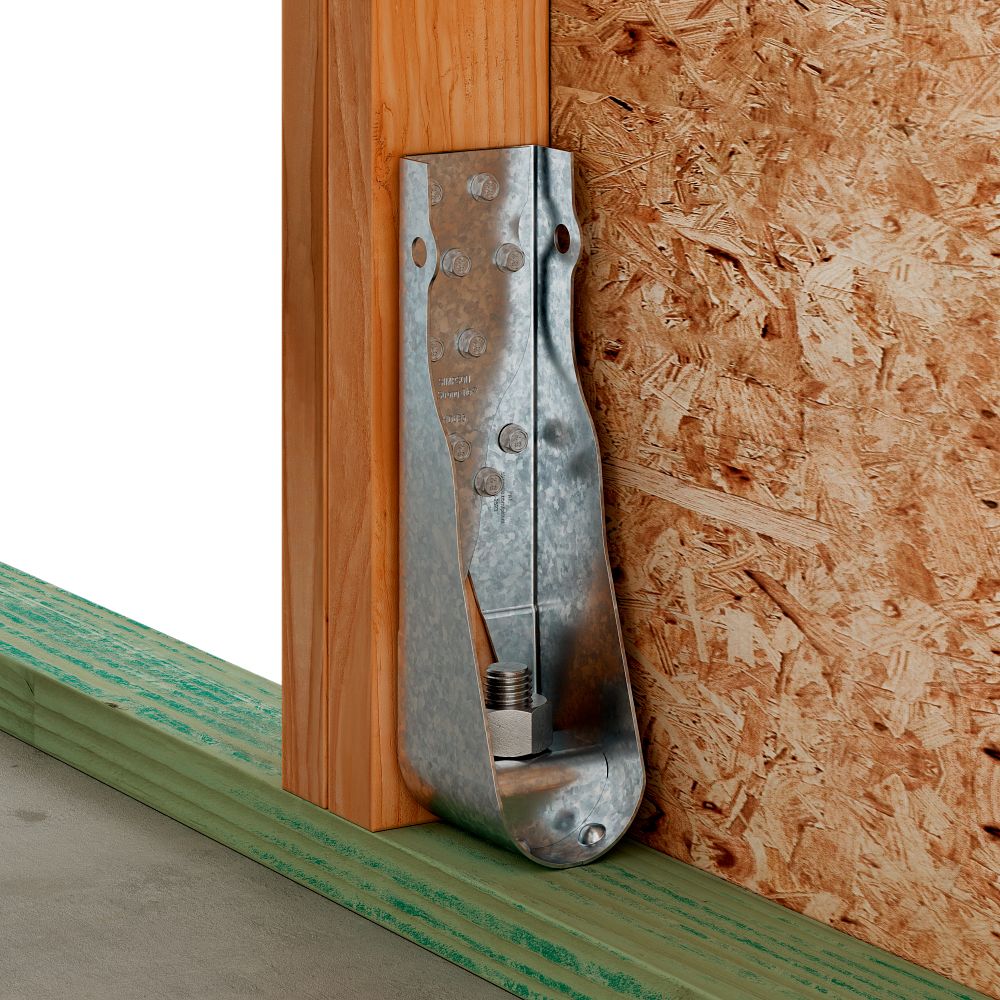

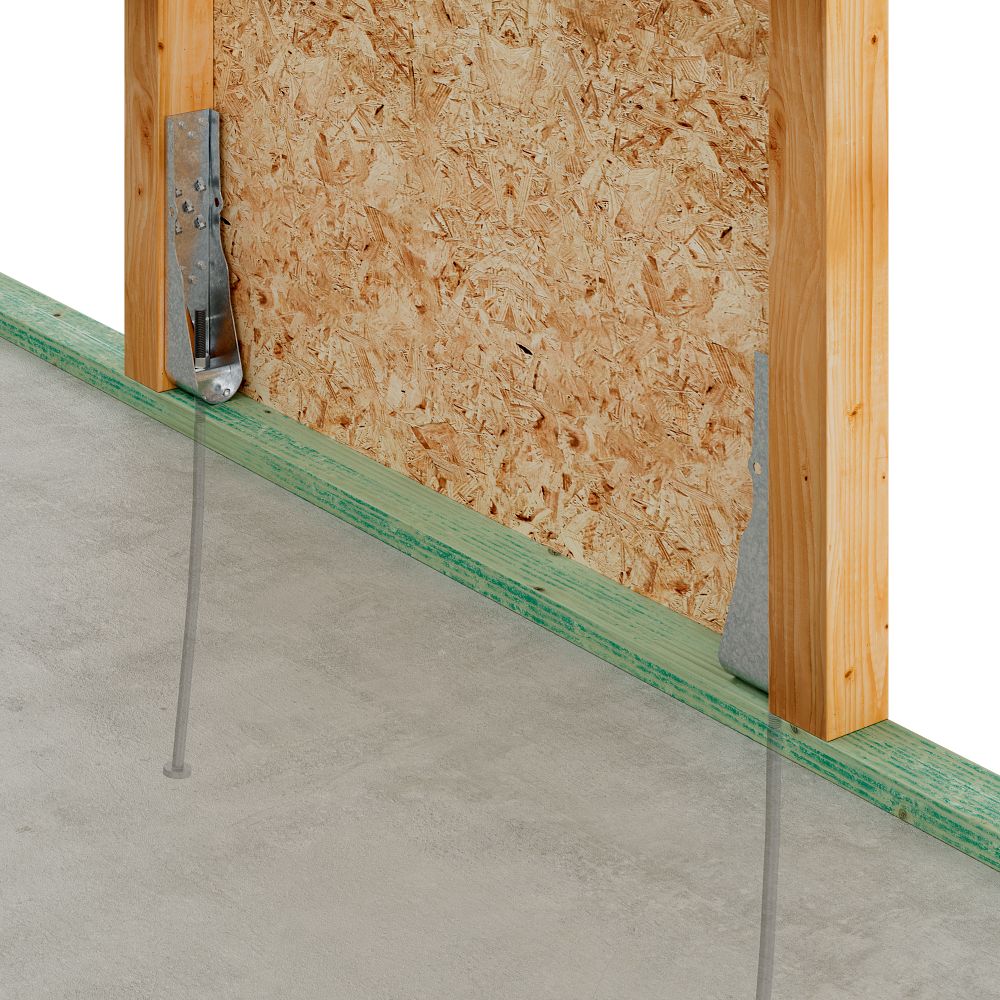

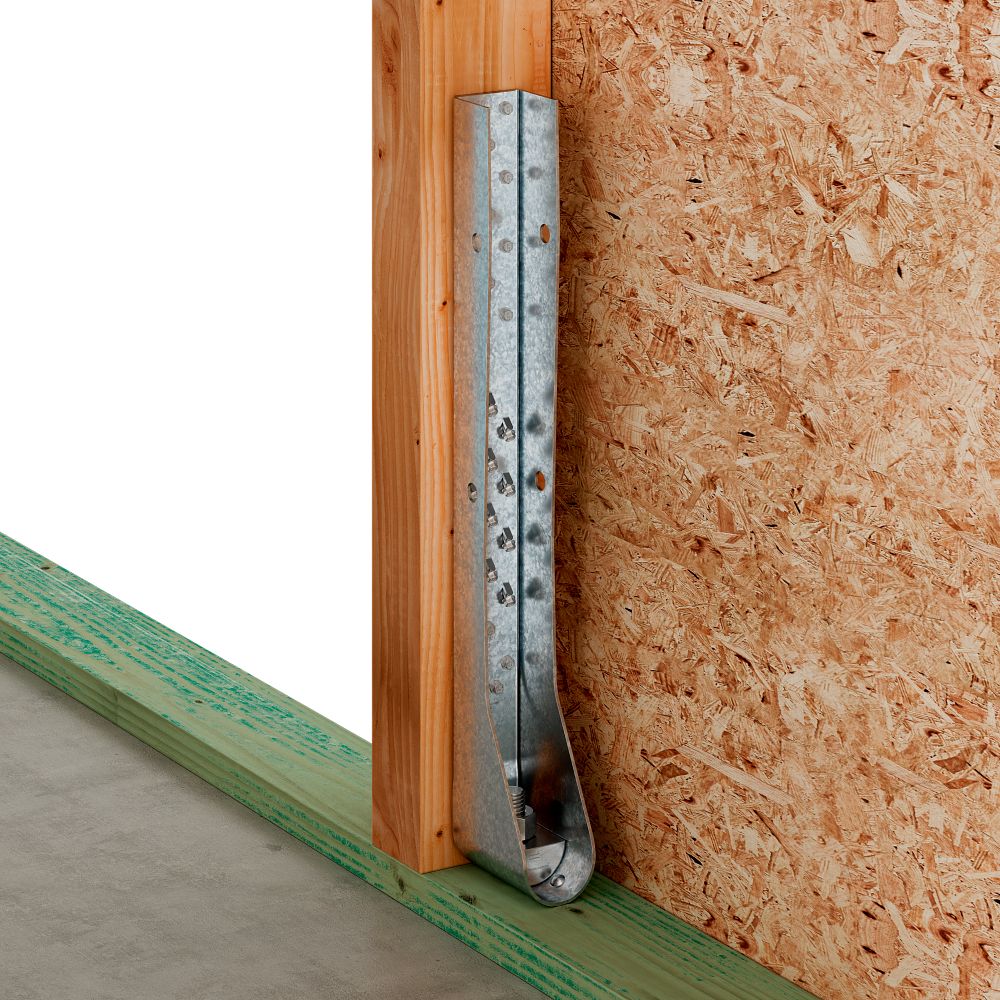

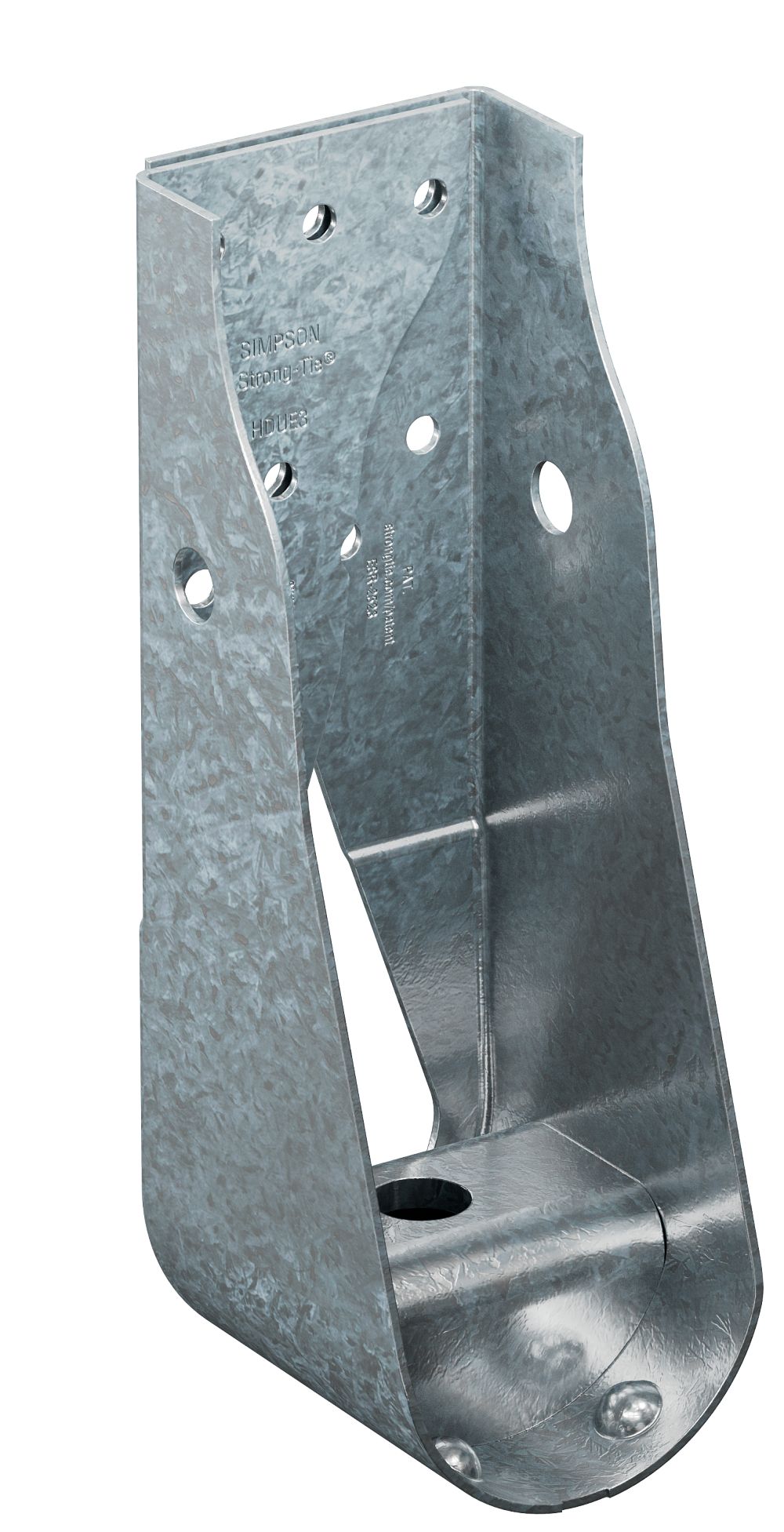

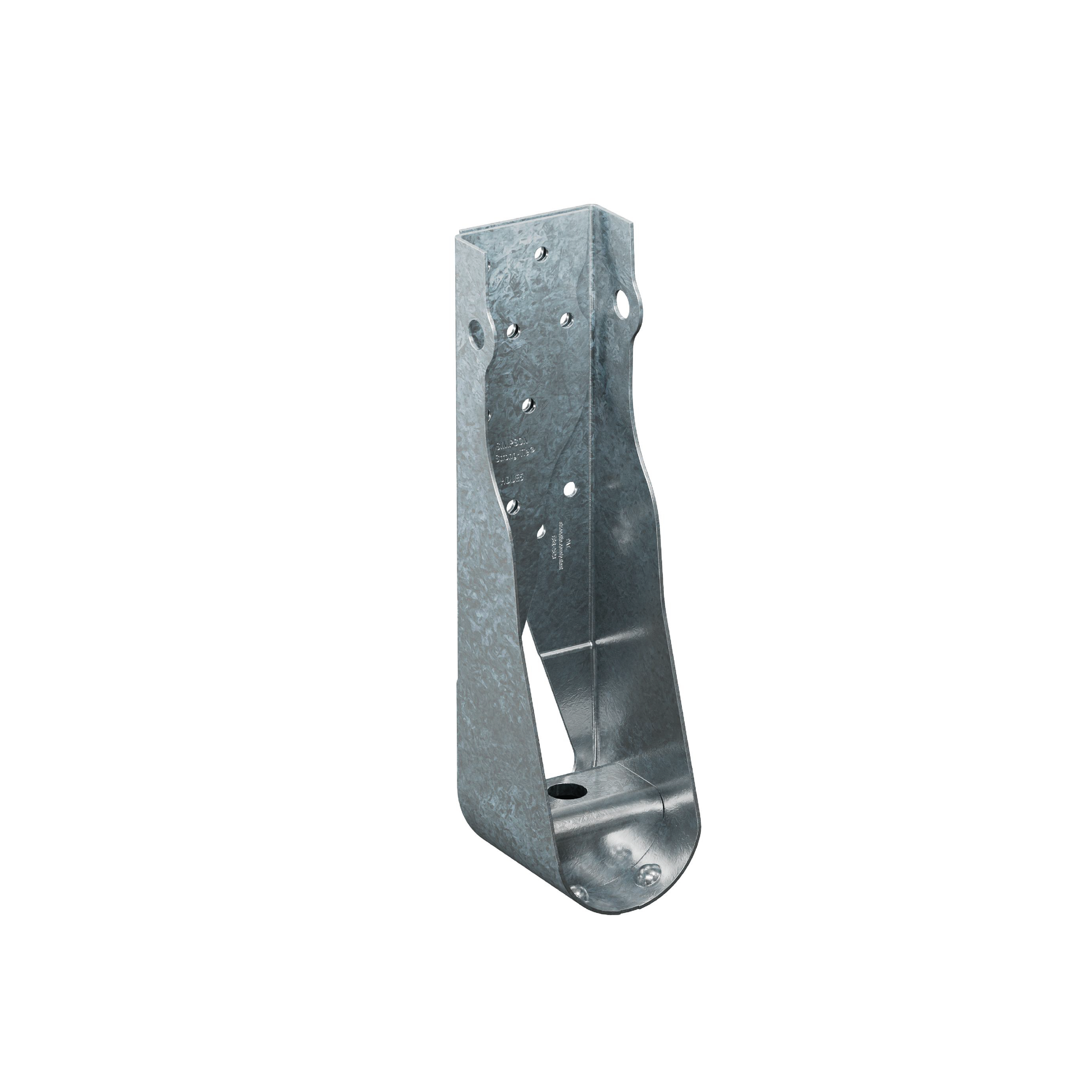

The HDUE is a next-gen holdown built for today’s demanding wood-framed structures — including taller residential builds with limited shearwall space. With higher load ratings than its predecessor (the HDU), it offers a straightforward one-to-one replacement and delivers excellent performance in shearwall, braced panel, and lateral-force applications.

Designed with a predeflected seat to reduce movement under load, the HDUE features an overlapping back plate for added strength and optimized screw patterns to minimize splitting. Larger models use angled fasteners for enhanced tension capacity while reducing screw count. Installs easily with Strong‑Drive® SDS Heavy‑Duty Connector screws.

Available in multiple sizes to suit a range of load demands.

Key Features

- Predeflected seat minimizes deflection under load

- Overlapping back plate improves strength and helps prevent post splitting

- Angled fasteners (on larger models) increase tension capacity with fewer screws

- Optimized screw patterns reduce wood splitting at post ends

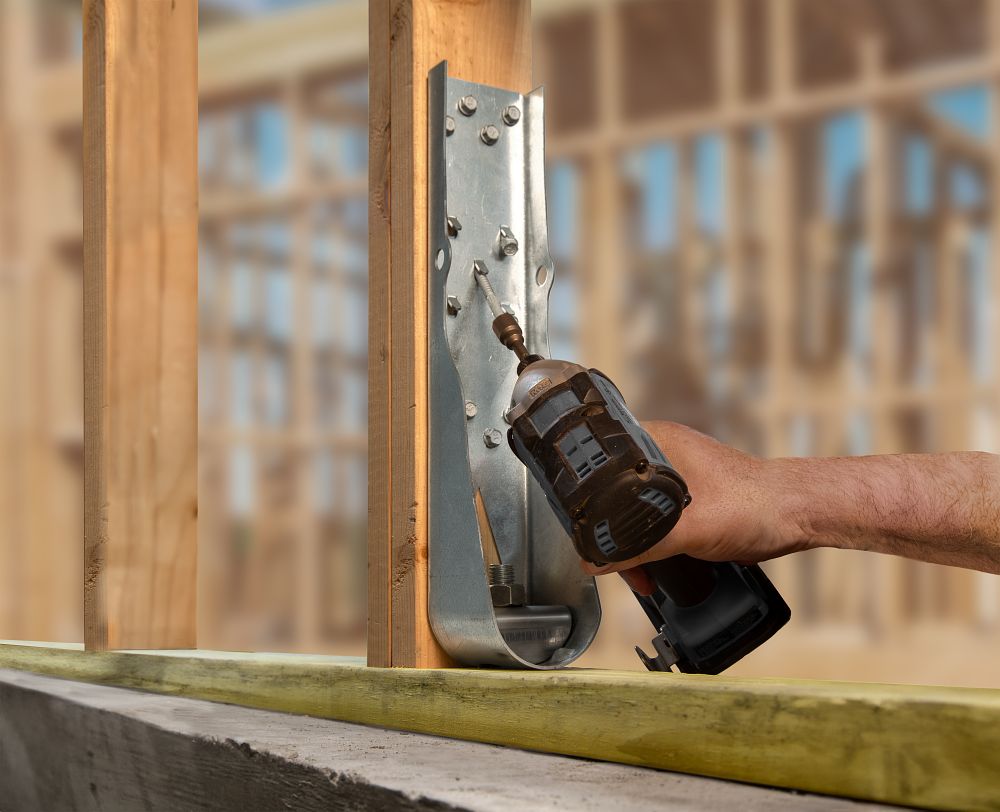

- Installs with Strong‑Drive SDS Heavy‑Duty Connector screws

- Extruded seat and teardrop holes for stronger, more even load distribution

Material

- HDUE3/5/7: 14 ga.

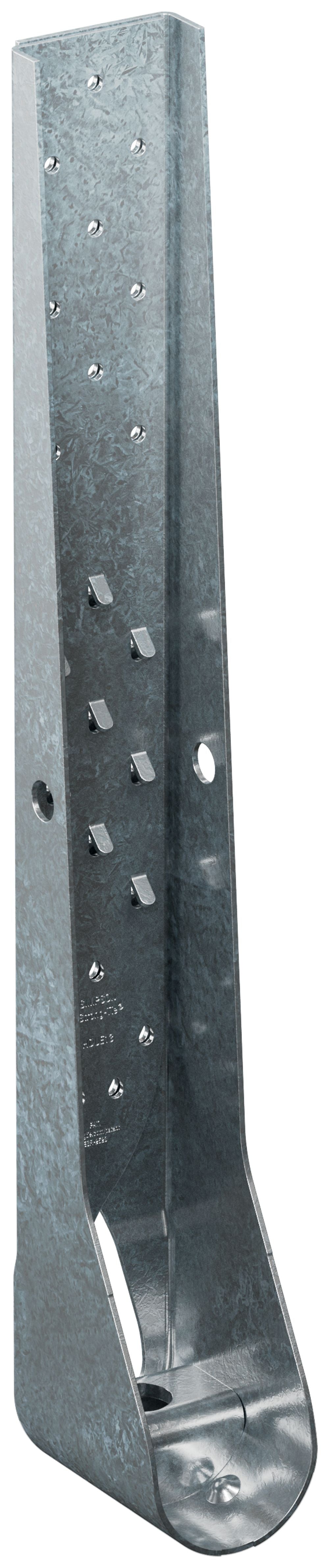

- HDUE9/13: 12 ga.

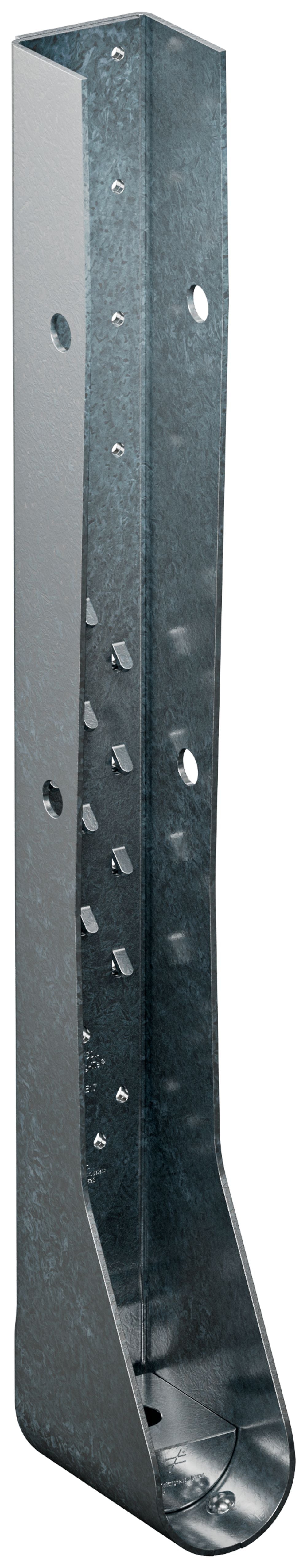

- HDUE17: 10 ga.

Finish

- G90 or Hot-Dip Galvanized (HDG)

Tested to ICC-ES AC155 standards
