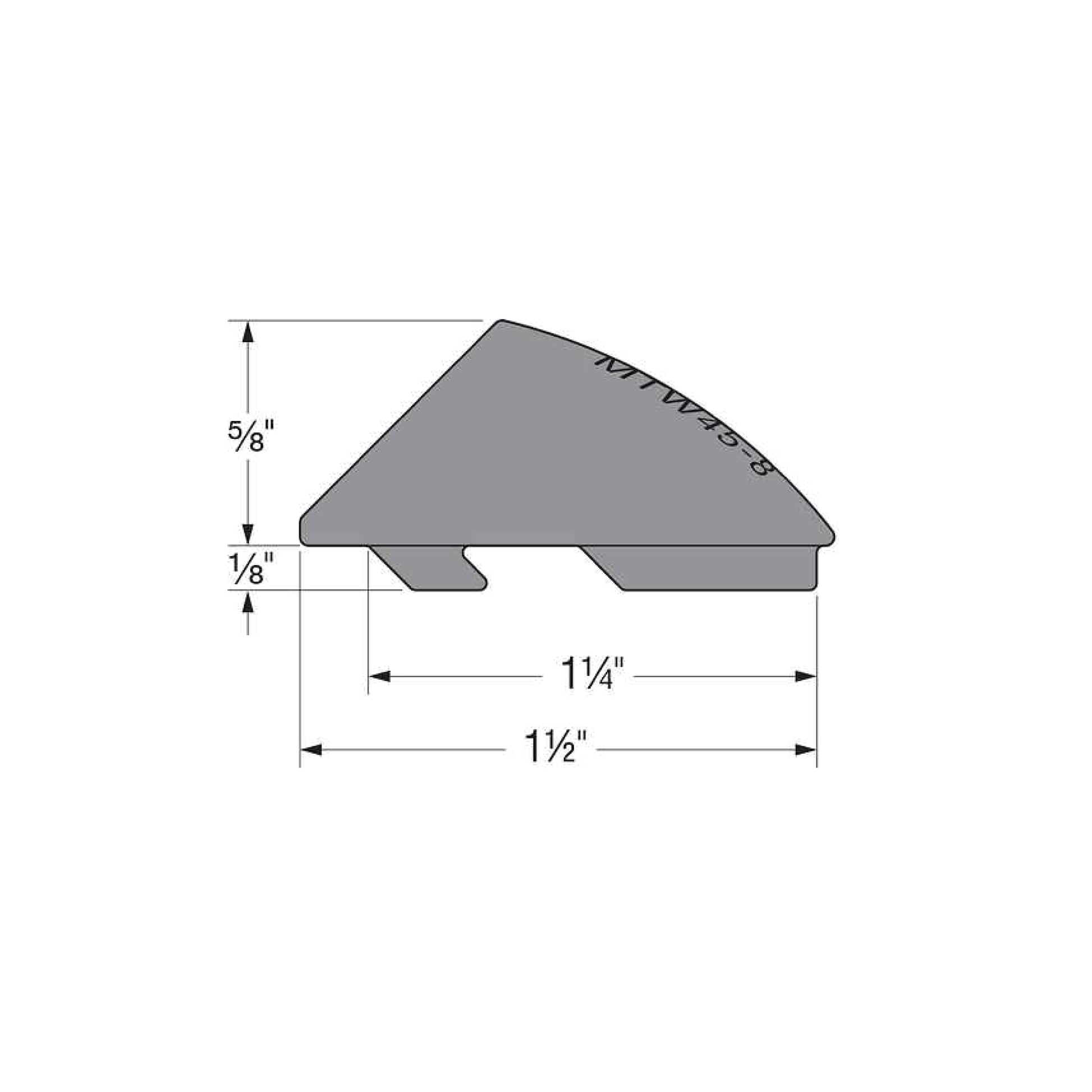

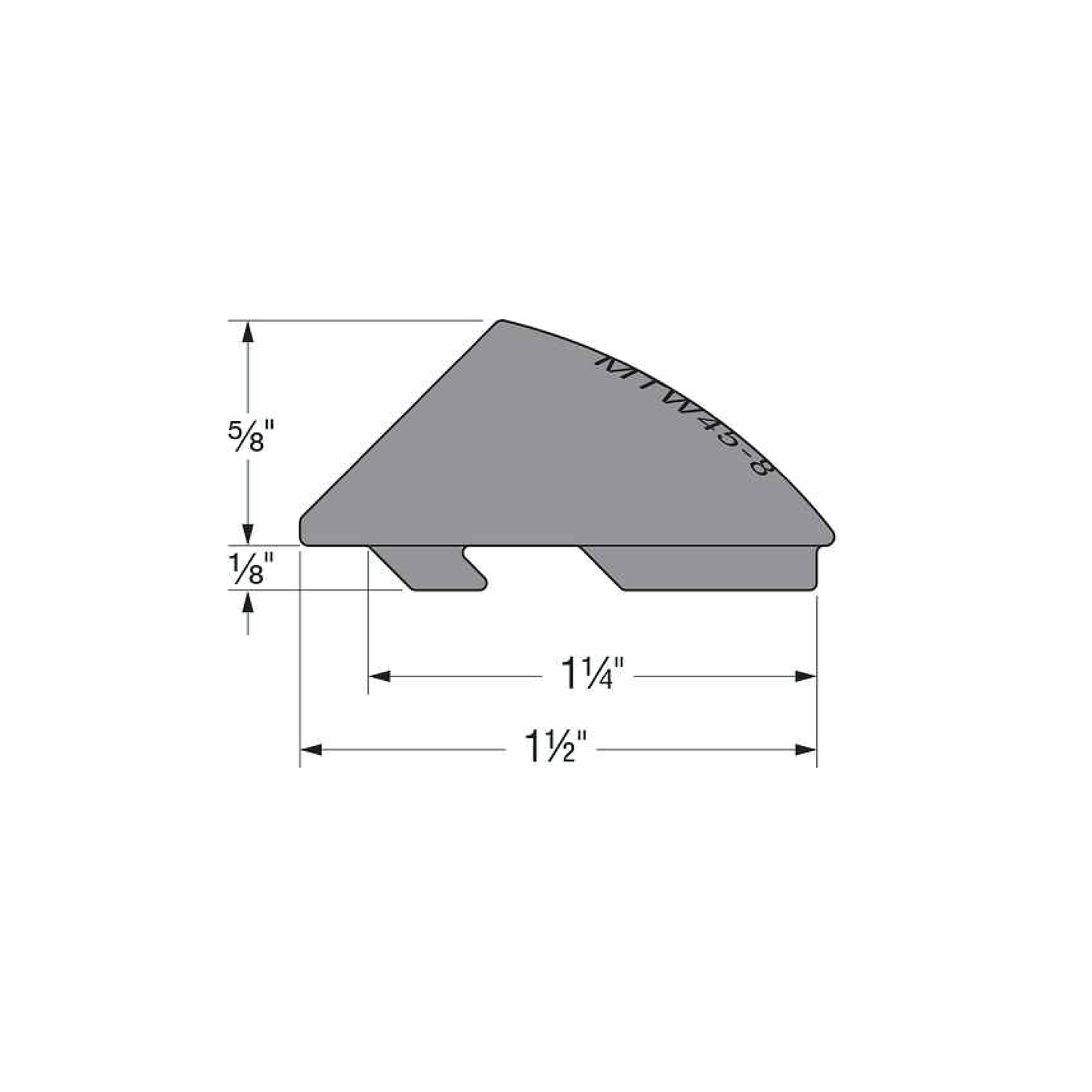

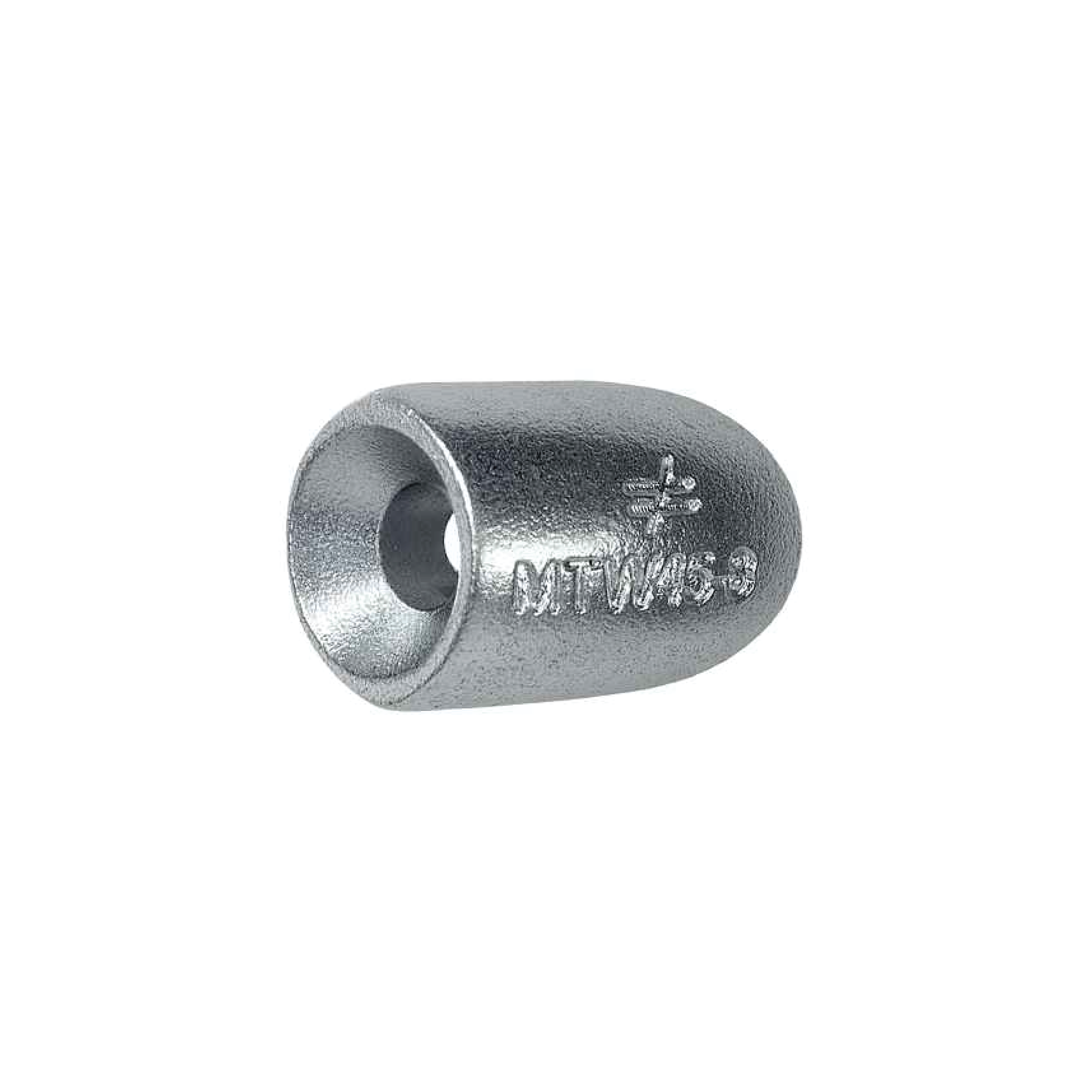

MTW™ Mass Timber Angled Washer

Inclined Screws for Stronger Timber Connections
The Simpson Strong-Tie® MTW45-8 is engineered to enhance the strength and stiffness of mass timber connections by guiding screws at a precise 45° angle. Designed for use with a variety of connection plates, it pairs with 8 mm-diameter Strong-Drive® SDCF Timber-CF screws for high-performance fastening.

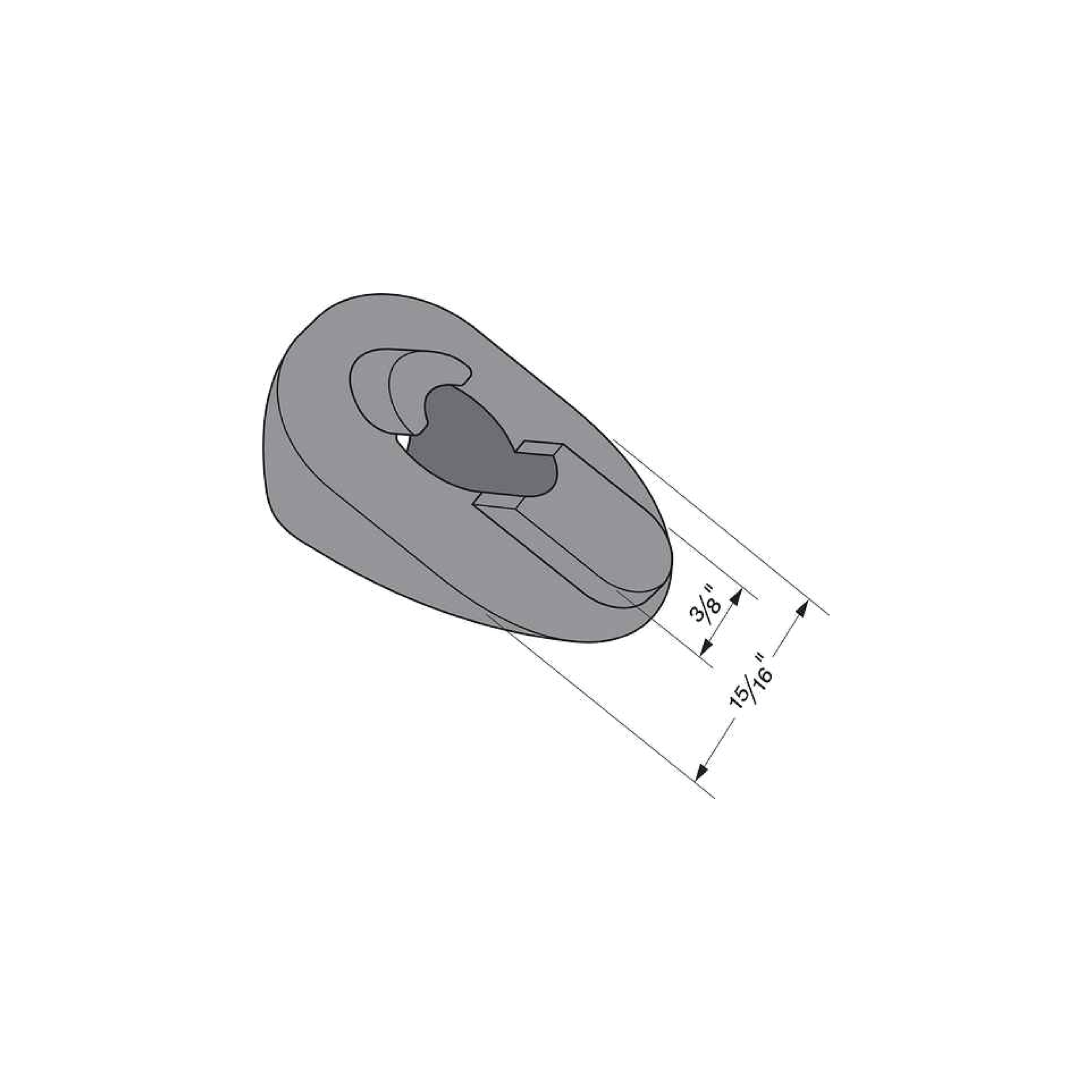

• Recessed hole ensures a flush, clean finish with the countersunk SDCF screw head
• Precision-guided design drives screws at a consistent 45° angle
• High load capacity allows for fewer screws per connection
• Material: ASTM A27, Grade 70–40
• Finish: Zinc electroplated
